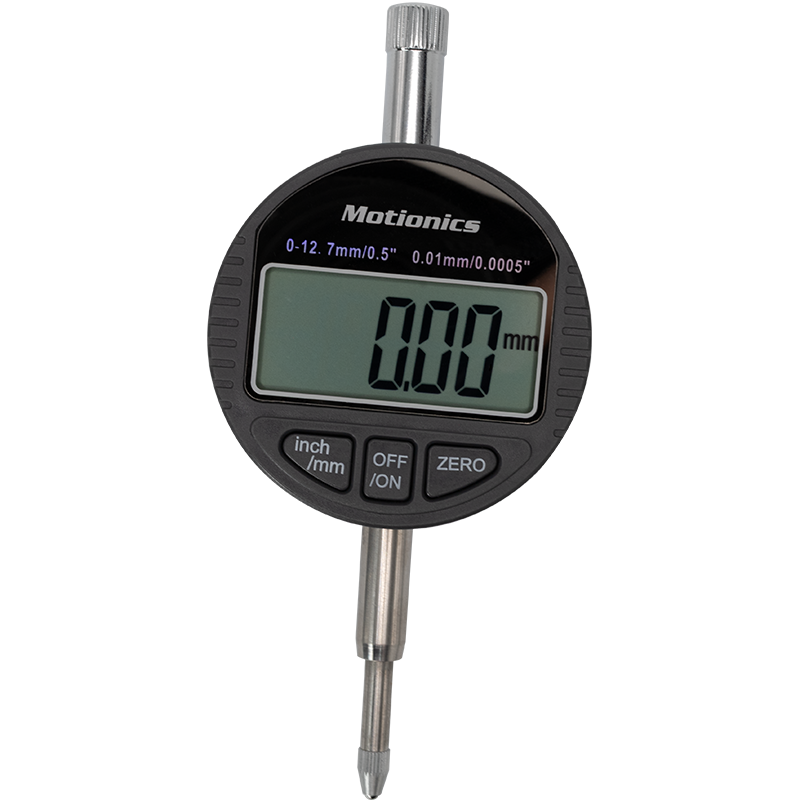

BlueDial-LT 103

BlueDial Bluetooth Indicator

A high-accuracy dial indicator that combines absolute measurement for deflection applications, high resolution and a high-quality build with an integrated Motionics Bluetooth transmitter. The BlueDial allows you to safely and efficiently record deflection measurements wirelessly on your iPad, iPhone, Android device, or Windows PC, while eliminating the hassle of cables and wires.

Applications:
-Measuring deflection in slewing bearings on large excavators or cranes
-Monitoring structural movement in machine frames during load testing
-Capturing runout on rotating shafts or face plates in mining and heavy industry

Device Connection

• For iOS, up to 14 gauges can be simultaneously connected.
• For Android, up to 8 gauges can be simultaneously connected.
• For Windows PC, up to 8 gauges can be simultaneously connected to a single dongle. More dongles can be added at the same time to increase connection capacity

Technical Specification

• Measuring Range: 12.5 mm
• Resolution: 0.001 mm
• Accuracy: ±0.0002" (0.005mm)
• Wireless Data Transmission Rate: 8 Hz
• Wireless Data Transmission Range: up to 10 m (line of sight)
• Working Temperature: 0-40 ºC
• Battery: 400 mAh rechargeable
• Battery Usage Life: 30 hr
• Charging: 5 VDC USB
