BluePSI BP210001

Pressure Range Model Number

Transducer Error

Data Logging

Temp.

Measurement

100 PSI  BP2-100-01

BP2-100-02
± 0.25 PSI No

Yes
Yes
1,000 PSI BP2-01K-01

BP2-01K-02
± 2.5 PSI No

Yes
Yes
5,000 PSI BP2-05K-01

BP2-05K-02
± 12.5 PSI No

Yes
Yes
10,000 PSI BP2-10K-01

BP2-10K-02
± 25 PSI No

Yes
Yes
15,000 PSI BP2-15K-01

BP2-15K-02
± 37.5 PSI No

Yes
Yes

Common Specifications

Accuracy: ±0.25% of full scale

Proof Pressure: 2x measurement
range

Burst Pressure: 5x measurement
range

Transmission Range: Up to 35m

Wireless Data Rate: Up to 10 samples/sec

Ambient Operating Temperature: -20 to 85 °C
Media Temperature 125 °C

Temp Measurement Range: -20 to 85°C ±3°C

Battery Life: 2 years at 5-second interval
with CR2050

Battery Type: CR2050/CR2032

Port Thread: ¼-18NPT

Product Description

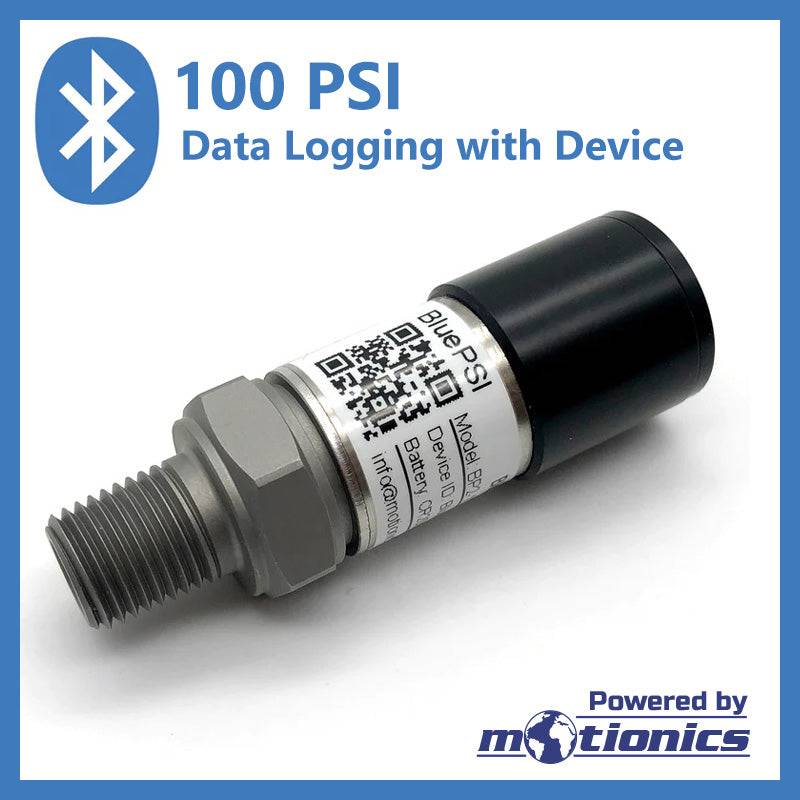

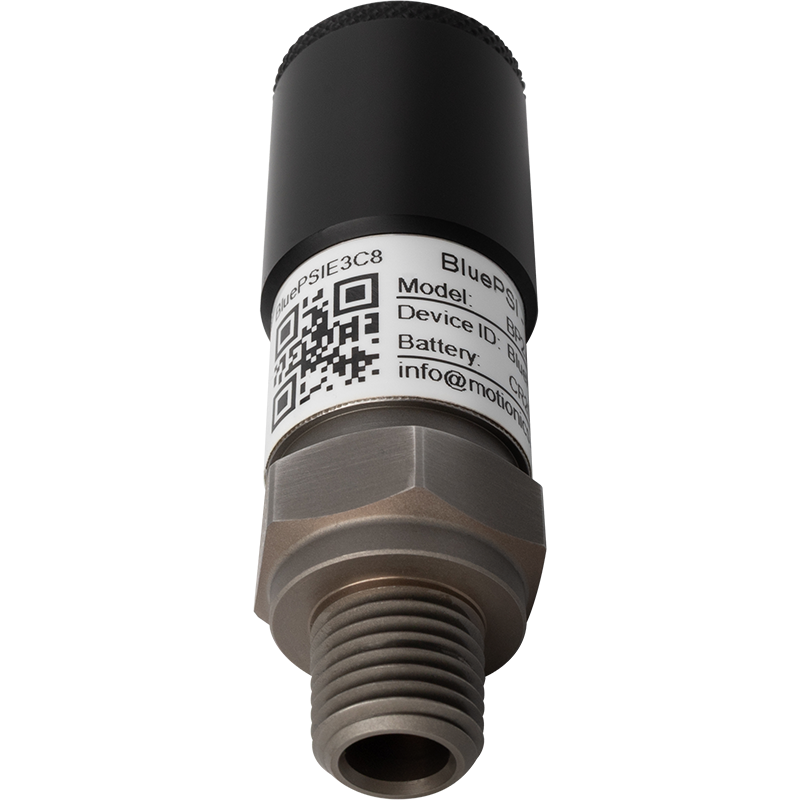

BluePSI is a wireless pressure sensor used for the measurement of liquid or gas pressure as well as temperature measurement. These Bluetooth-enabled pressure sensors, with the help of our free software, allow you to continuously monitor pressure in multiple locations simultaneously on your iOS, Android, or Windows device.

It has high accuracy (±0.25%FS), has a long battery life (up to 2 years with a coin battery), and is IP67 rated for high resistance to water and dust exposure. Most importantly, it eliminates the need for hard wiring and manual data logging thanks to its Bluetooth Low Energy wireless connectivity.

Features

  • Compact, will fit side by side on transmission test
  • Standby battery time 2 years
  • 1440 hrs. run time on 5 samples a second
  • Waterproof IP67
  • US made

Device Connection

For iOS, up to 14 gauges can be simultaneously connected.

For Android, up to 8 gauges can be simultaneously connected.

For Windows PC, up to 8 gauges can be simultaneously connected to a single dongle. More dongles can be added at the same time to increase connection capacity.

Data Logging

Along with streaming real-time readings, BluePSI2-XXX-02 models log data internally. Users can simply start data logging on the device and come back later to fetch data logged in onboard memory all at once in a batch. The data logging feature provides a new solution for use cases where it’s inconvenient to leave a receiving smart device or PC, or it’s difficult to maintain a connection throughout the data collection session
