BluePSI BP201K01

BP201K01

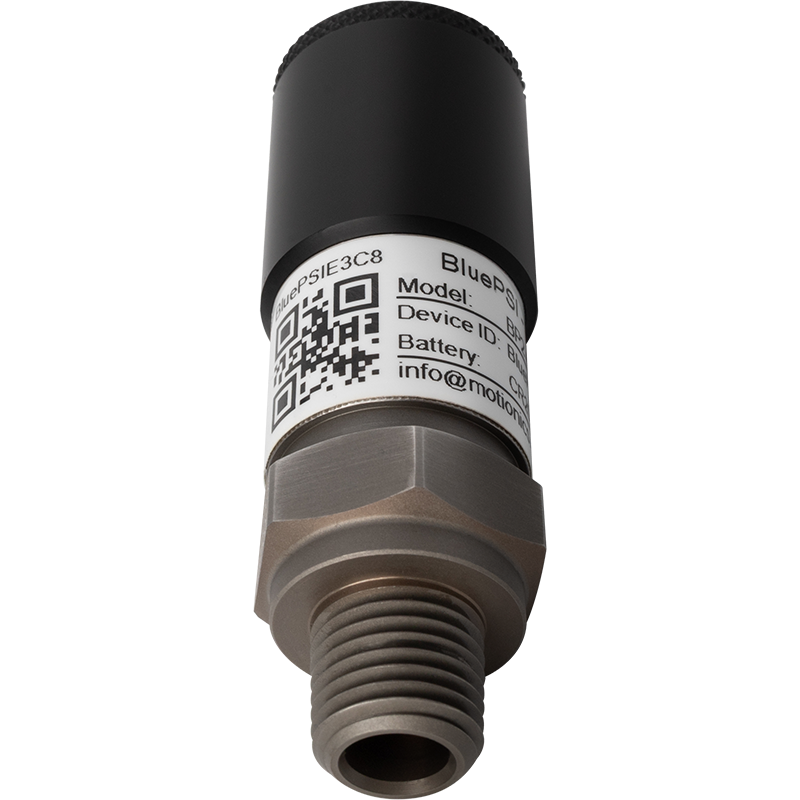

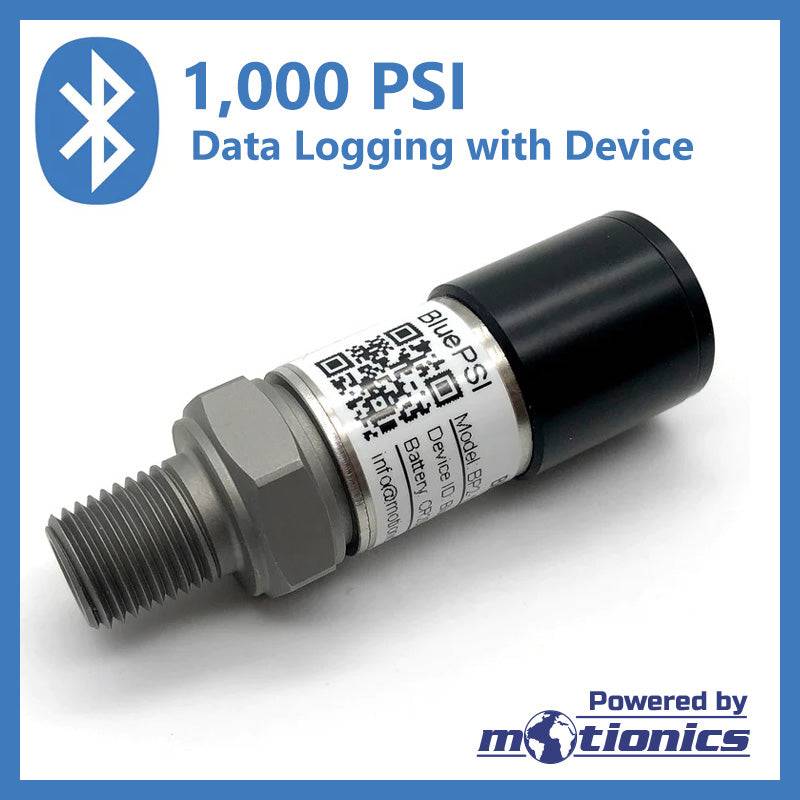

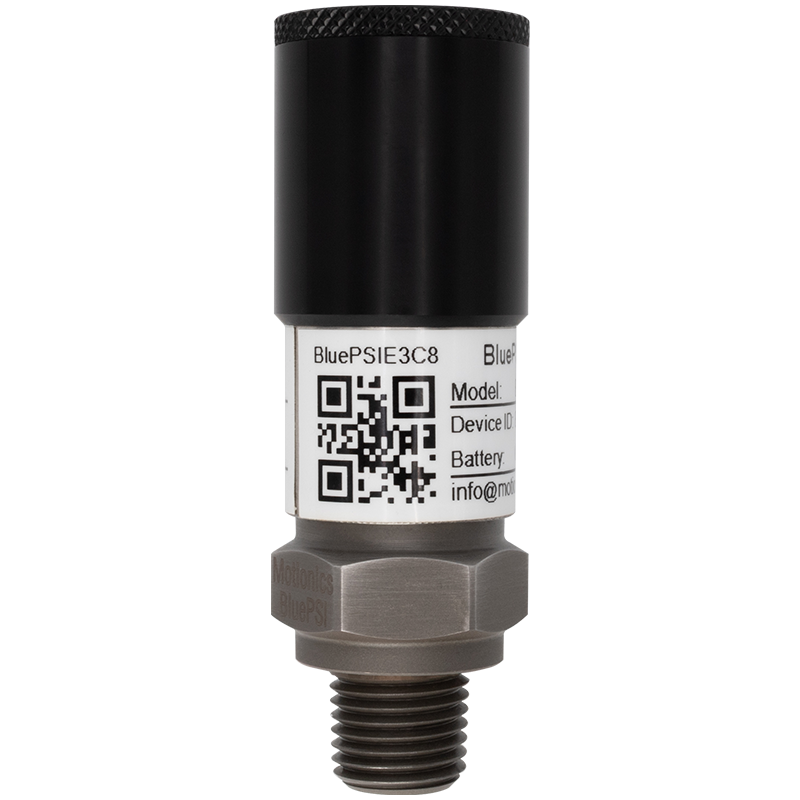

BluePSI - Bluetooth Pressure Sensor
Enjoy wide measurement range from 0 to 1000 PSI and seamless wireless pressure data streaming to your smart device with the BluePSI BP2-01K-01; purpose-built for professionals who need instant insights and remote access, without the hassle of manual data entry.

Key features include:

Pressure and temperature measurement
Stream and log data via MultiGage app on iOS, Android, and Windows devices
Remote zeroing and cloud streaming
Custom formulas and adjustable analog meter
Export to CSV, Excel, SPC , and cloud drives
Customisable remote dashboard

Perfect for monitoring pressure in hydraulic and pneumatic systems or temperature fluctuations in industrial machinery. Whether you're working on-site or off-grid, the BluePSI eliminates the dangers of live work while keeping your pressure data flowing live, logged and ready to analyse.

Applications:

Monitoring hydraulic and pneumatic system pressures
Diagnosing pressure fluctuations in industrial machinery
Remote pressure testing during servicing or shutdowns

Technical Specification

BluePSI Bluetooth Pressure + Temperature Sensor
Measurement Range: 0~1000psi
Accuracy: ±0.25% FS
Bluetooth Low Energy 4.0 Wireless Connection
Wireless Data Transmission Interval: Adjustable to 10 Samples/sec
Wireless Data Transmission Range: 20m
Weather Proof: IP67
Working Temperature: -20 - 85°C
Battery: CR2050/CR2032
Pressure Port: ¼-18 NPT

Device Connection

• For iOS, up to 14 gauges can be simultaneously connected.
• For Android, up to 8 gauges can be simultaneously connected.
• For Windows PC, up to 8 gauges can be simultaneously connected to a single dongle. More dongles can be added at the same time to increase connection capacity

ESSENTIAL RESOURCES

Here you can access essential resources to help you make the most of our product. Simply click on the links below to download the files to your device.
