• Sku:

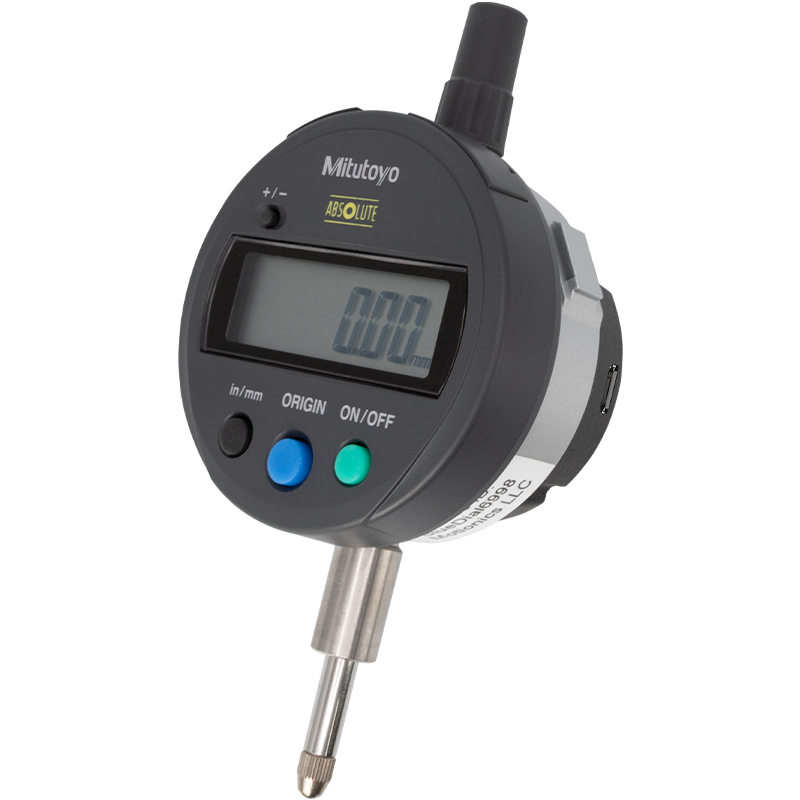

BlueDial 793

Comparison Table

Bluedial-783 Bluedial-793
Measuring Range 12.7 mm 12.7 mm
Resolution 0.01 mm 0.001 mm
Accuracy ±0.02 mm ±0.003 mm
Wireless Data Rate Up to 10 samples/sec Up to 10 samples/sec
Transmission Range  35m
Working Temperature 0-50 ºC 0-50 ºC
Battery Usage Life 30hr 30hr

Product Description

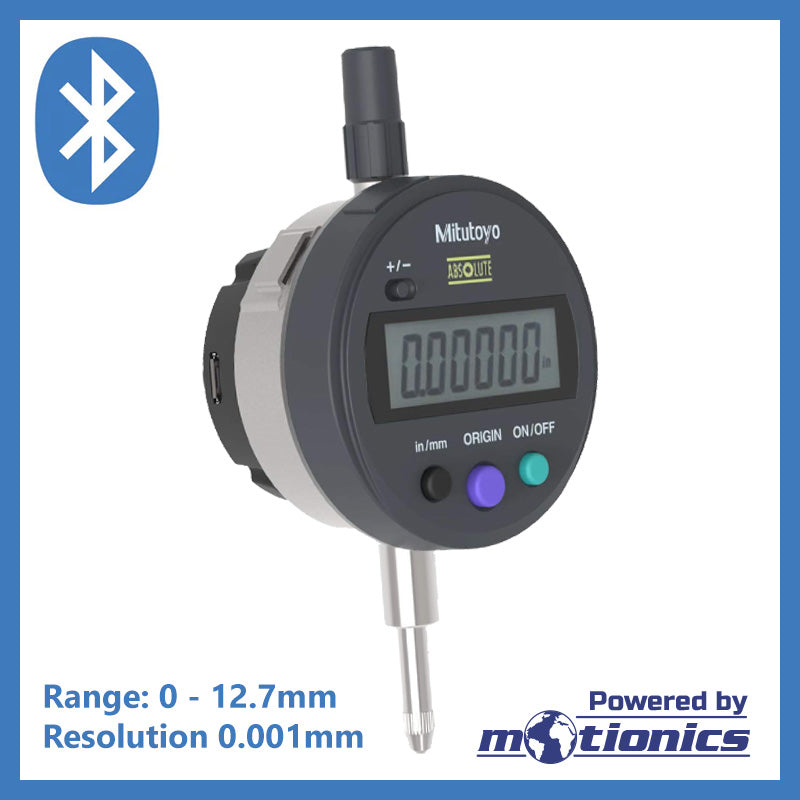

BlueDial integrates Bluetooth Low Energy technology with a Mitutoyo digimatic dial indicator. It keeps the benefits of high-precision Mitutoyo devices, absolute measurement, high resolution, high accuracy and a high-quality build, while improving on the dial with Bluetooth capability. Thanks to the built-in Bluetooth transmitter, users can now remotely view and record measurement readings on their smart device or Windows PC. BlueDial works with MultiGage, our free cross-platform software that lets you read and record measurements wirelessly on your iPad, iPhone, Android device, or Windows PC.


  • 24 hr. run time on full charge
  • Japanese Mitutoyo dial
  • US made Bluetooth module.

Device Connection

For iOS, up to 14 gauges can be simultaneously connected.

For Android, up to 8 gauges can be simultaneously connected.

For Windows PC, up to 8 gauges can be simultaneously connected to a single dongle. More dongles can be added at the same time to increase connection capacity.

View full details
