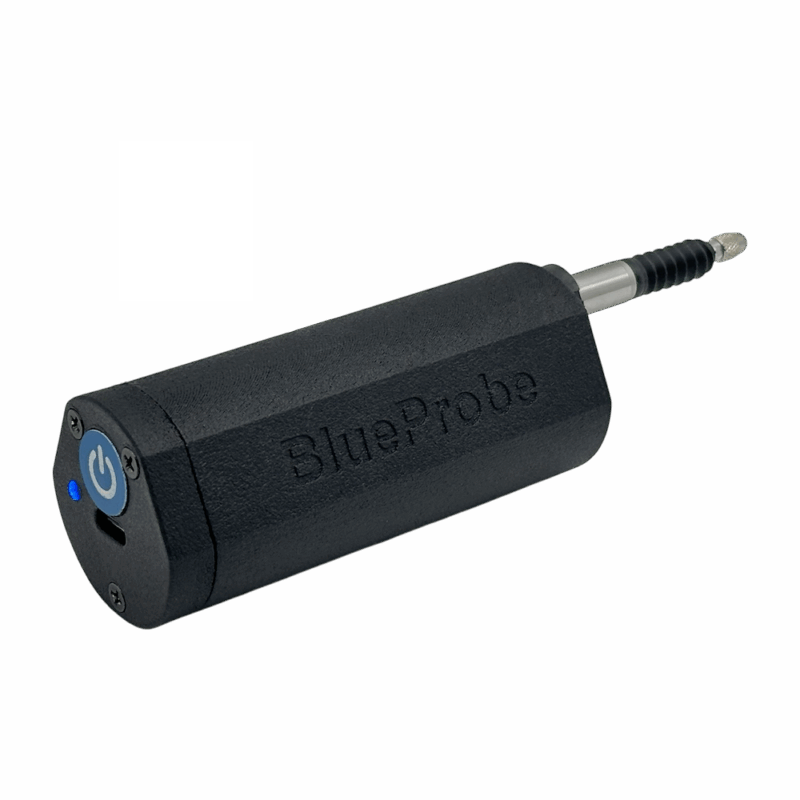

BlueProbe - Bluetooth Probe Deflection Gauge

Quantity

BlueProbe - Bluetooth Probe Deflection Gauge

LiveTest’s BlueProbe is a compact, high-accuracy Bluetooth gauge designed for fast, reliable displacement and deflection measurements. With a powerful built-in BLE transmitter, it delivers precise wireless readings across a range of industrial applications, helping eliminate live work and improve operator safety.

The device streams real-time data to smartphones, tablets or Windows PCs over distances of up to 90 m (300 feet). Multiple probes can operate simultaneously for synchronised measurements and BlueProbe also supports onboard data logging for batch retrieval when connectivity is limited. Powered by a rechargeable battery, it’s a portable, cable-free solution for demanding field and workshop environments.

Applications:

Measuring structural movement or shaft runout
Multi-point displacement testing across large machinery
Logging deflection data in remote or hard-to-access locations

Technical Specification

⦁ Measurement Range: 0.4” (10mm)
⦁ Resolution: 0.00005" (0.001mm)
⦁ Accuracy: 1.7μm
⦁ Data Transmission Range: 100m (330ft)
⦁ Data Rate: Up to 66 Hz
⦁ Dimensions (Incl. Plunger): 5.45” (138.4mm) x 1.53” (38.9mm) x 1.52” (38.6mm)
⦁ Stem Holding Diameter: 0.31” (8mm)
⦁ Probe Tip Thread Size: M2.5
⦁ Working Temperature: 32 to 122°F (0 to 50°C)
⦁ Dust/Water Resistance: IP66
⦁ Battery: Rechargeable LiPo Battery
⦁ Battery Life: 10 Hours
⦁ Charging Time: 2.5 Hours
⦁ Onboard Data Logging: Yes
⦁ MagBase Magnetic Force*: Up to 176lbs
