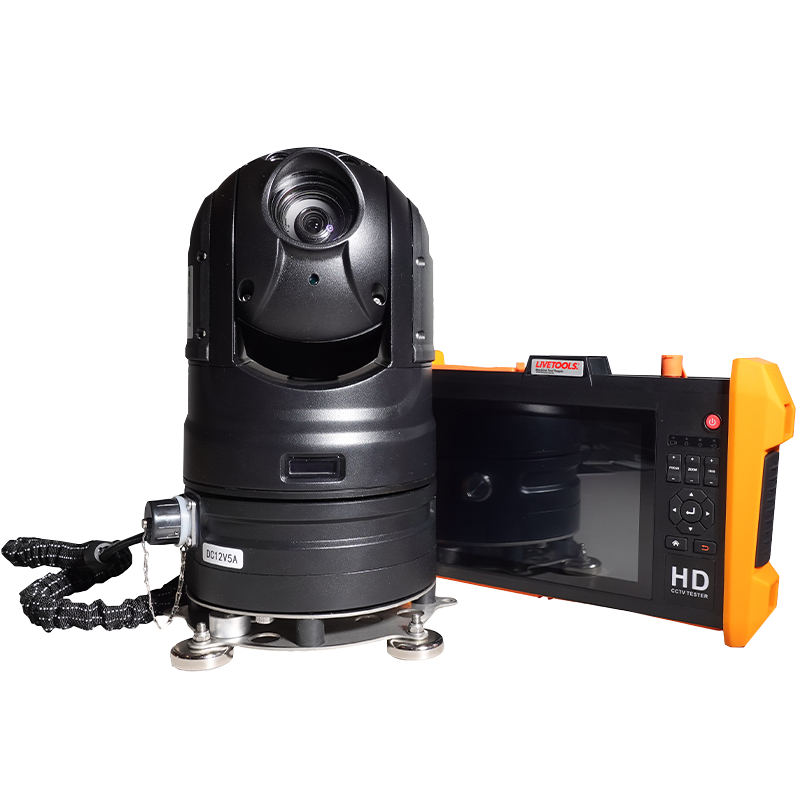

PTZ Camera
Mount the camera to the underside of a vehicle for conducting inspections while live testing.
Technical Specifications
|
PTZ Camera |
|
| Operation Time |
9 hours |
| Range |
20m |
| Camera | 2mp HD 33x Optical Zoom |
| Connection | 4G WiFi |
| Camera Tilt | 360° Endless Rotation |
| Mount Option |
Magnetic Base & Tripod |
| Weight |
4kg |

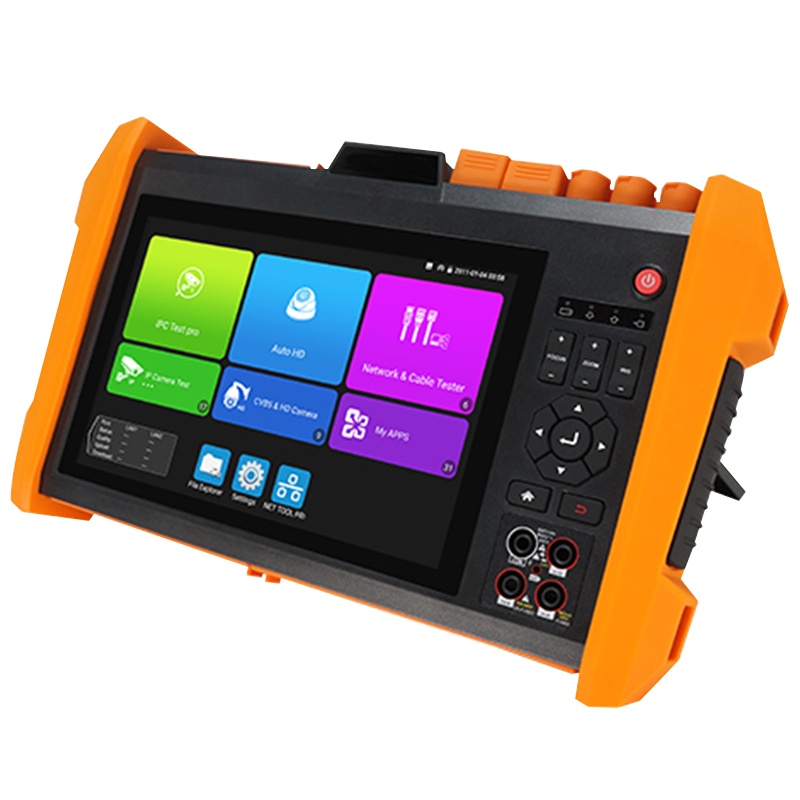

| PTZ Camera Screen | 7" IPS Touch Screen |
| Resolution | 1280x800 |
| Battery | Built-in 7.6V Lithium polymer battery, 7800mAh |
| Dimensions/Weight | 276mm x 163mm x 44mm / 1.14kg |
An all-metal waterproof (IP66 rating) inspection camera with a built-in lithium battery lasting up to 9 hours. With a built-in 4G transmission module, users can insert a local SIM card for real-time communication with the command center via 4G wireless transmission. During inspections, the PTZ camera can be temporarily installed at the desired location and easily removed afterward.
Applications:
- Live inspection of haul truck engine bays, undercarriages, or confined components
- Monitoring remote substations, switch rooms, or drill rigs in real time
- Temporary surveillance of high-risk or hard-to-access assets during shutdown or commissioning
