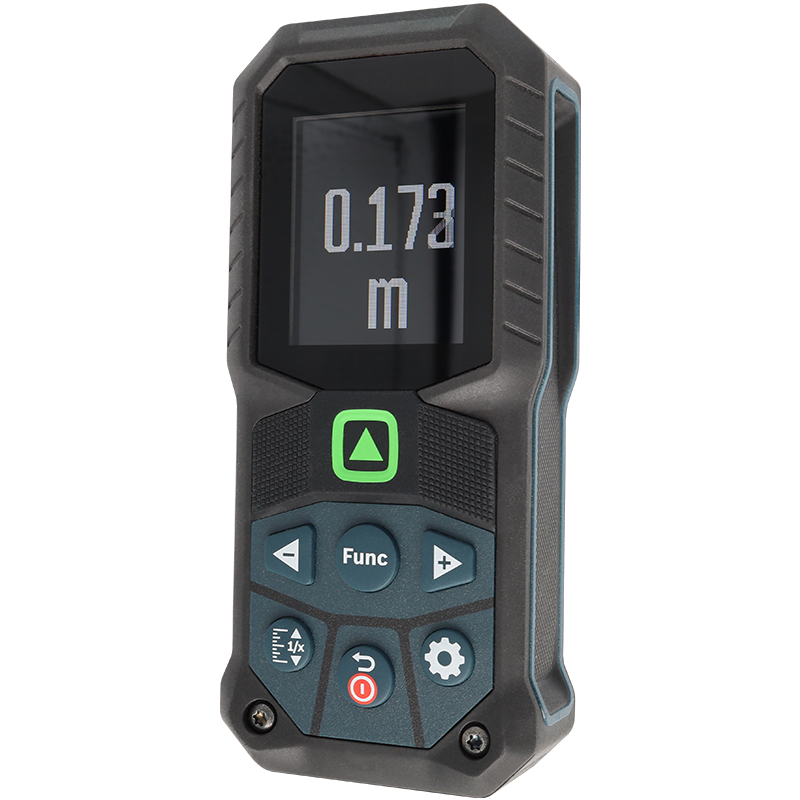

BlueLaser WLM27CG
Technical Specifications
| WLM27CG (Bosch GLM165-27CG) | |
| Measurement Range | 0.15 - 50m |
| Resolution | 0.5mm |
| Accuracy | ±1.5mm |
| Wireless Data Rate | 2 samples/sec |
| Transmission Range | 35m |
| Working Temperature | -10 - 40 ºC |
| Battery | 2x AA |
| IP Reading | IP65 |
| Laser Beam Colour | Green |

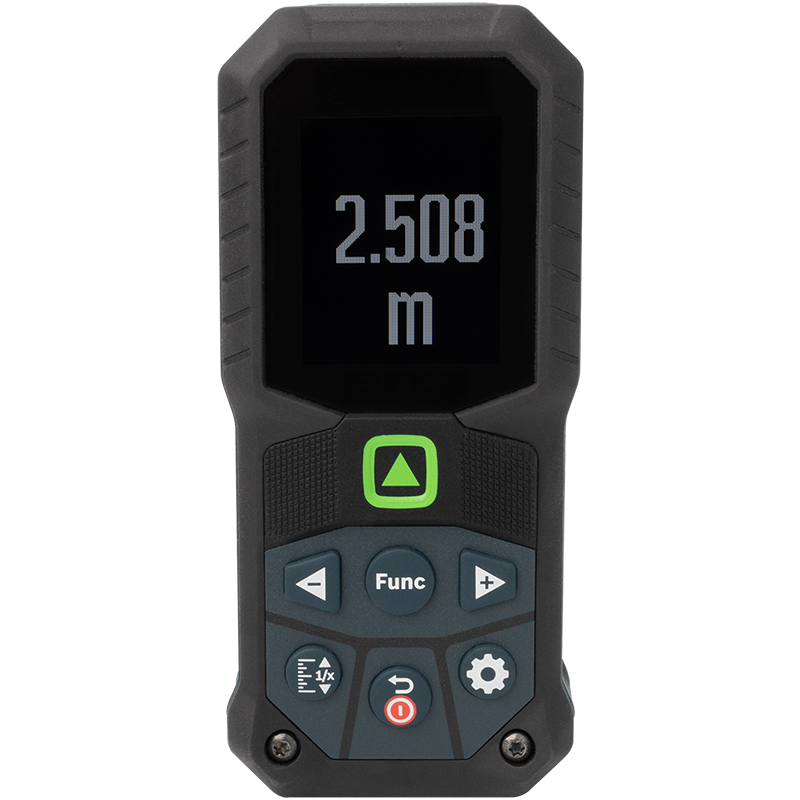

BlueLaser is a compact, accurate laser distance measure with Bluetooth Low Energy, measuring up to 50 metres to within 3.1 mm. It integrates seamlessly with MultiGage apps on iOS, Android, and Windows devices, providing precise coordinate references and facilitating various test processes.
Applications:
- Tracking boom or arm deflection on hydraulic equipment like loaders or shovels
- Verifying structural movement or wear in dragline components or long-span machinery
- Aligning machinery systems by capturing precise coordinate references from fixed point
For iOS, up to 14 gauges can be simultaneously connected.
For Android, up to 8 gauges can be simultaneously connected.
For Windows PC, up to 8 gauges can be simultaneously connected to a single dongle. More dongles can be added at the same time to increase connection capacity.
