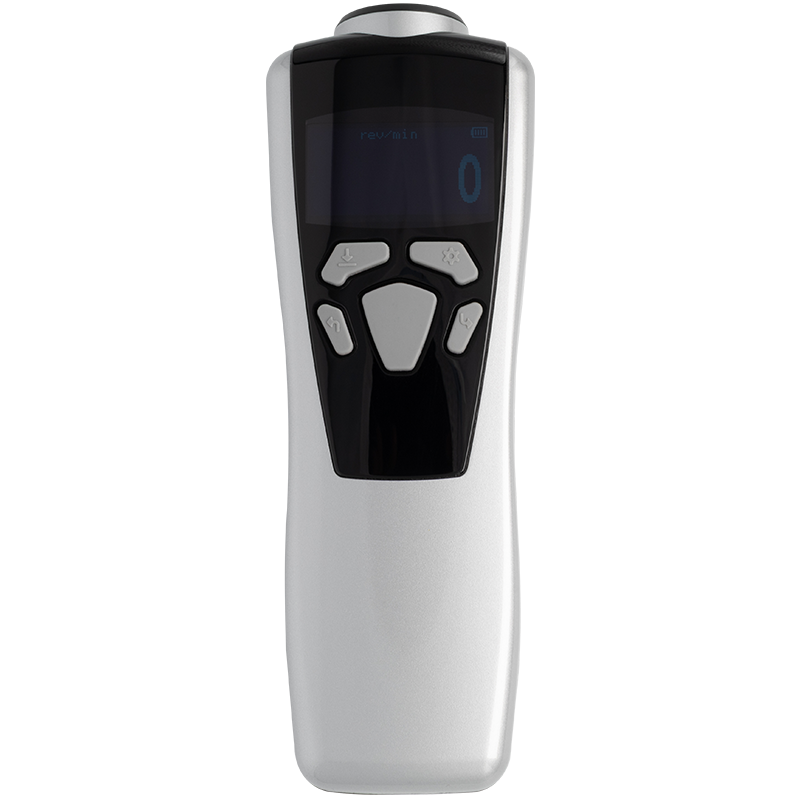

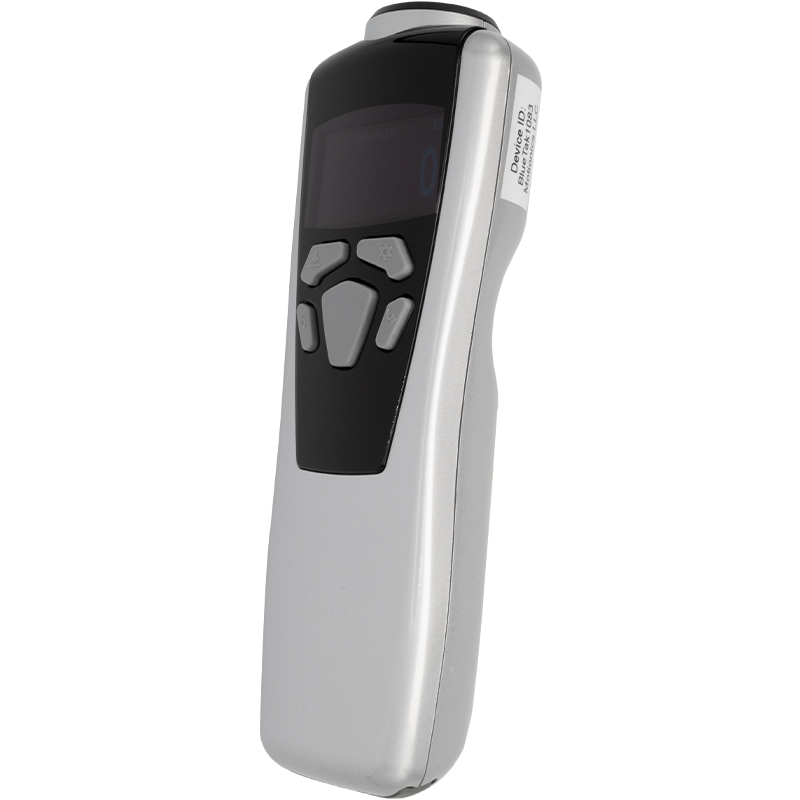

BlueTak Wireless Tachometer
Technical Specifications
| BlueTak | Contact | Non-contact |
|---|---|---|
| Measurement Range | 0.8-25,000 rpm | 6-99,999 rpm |
| Resolution | 1 RPM | 0-9,999: 0.1 RPM 10,000 and above: 1 RPM |
| Accuracy | ±0.006% of reading ±1 least significant digit | |
| Wireless Data Rate | 2 samples/sec | |
| Transmission Range | Up to 35m | |
| Working Temperature | 0-50ºC | |
| Battery | 2x AA Batteries | |
BlueTak is a Bluetooth digital tachometer for remote viewing and recordingofRPM measurements on iOS, Android, or PC wirelessly via MultiGage. It supports multiple instruments, enhancing safety and eliminating human error through wireless measurement.
Applications:
- Measuring RPM of pumps, motors, and rotating equipment
- Preventive maintenance of HVAC and ventilation systems
- Remote monitoring of unsafe or difficult-to-access machinery
For iOS, up to 14 gauges can be simultaneously connected.
For Android, up to 8 gauges can be simultaneously connected.
For Windows PC, up to 8 gauges can be simultaneously connected to a single dongle. More dongles can be added at the same time to increase connection capacity.
