Sku:

BlueDial-LT 302

In stock!

Product variants

Comparison Table

	Bluedial-202	Bluedial-203	Bluedial-302	Bluedial-402
Measuring Range	25mm	25mm	50mm	100mm
Resolution	0.01mm	0.001mm	0.01mm	0.01mm
Accuracy	±0.0025 mm	±0.0005 mm	±0.0025 mm	±0.0025 mm
Wireless Data Rate	Up to 8 samples/sec	Up to 8 samples/sec	Up to 8 samples/sec	Up to 8 samples/sec
Transmission Range	35m	35m	35m	35m
Working Temperature	0-40 ºC	0-40 ºC	0-40 ºC	0-40 ºC
Battery Usage Life	30hr	30hr	30hr	30hr

Downloads

MultiGage Software Quick Start Guide

Livetest Full Catalogue

Product Description

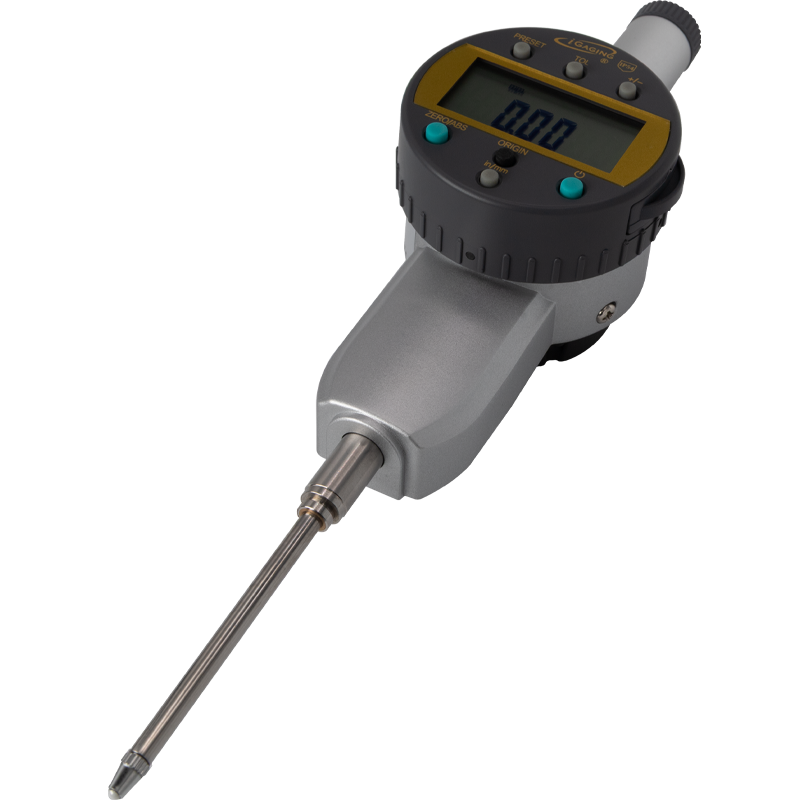

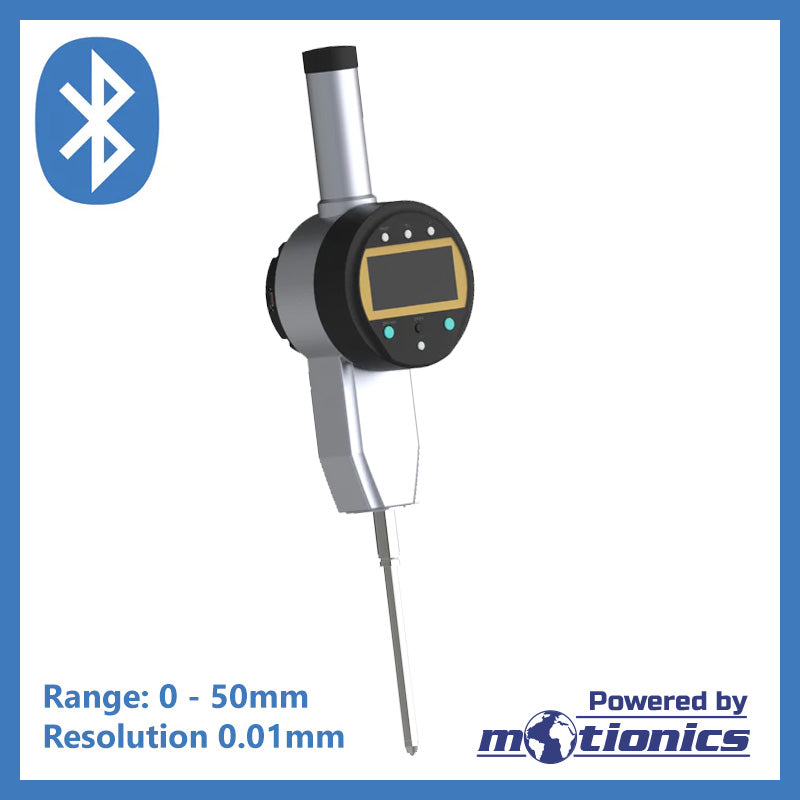

BlueDial-LT is a dial indicator with an integrated Bluetooth transmitter on the back. It integrates a high-accuracy dial indicator with a Bluetooth Low Energy data transmitter. All the readings will be wirelessly collected and displayed on a smart device or PC.

Device Connection

For iOS, up to 14 gauges can be simultaneously connected.

For Android, up to 8 gauges can be simultaneously connected.

For Windows PC, up to 8 gauges can be simultaneously connected to a single dongle. More dongles can be added at the same time to increase connection capacity.

View full details
