  • Sku:

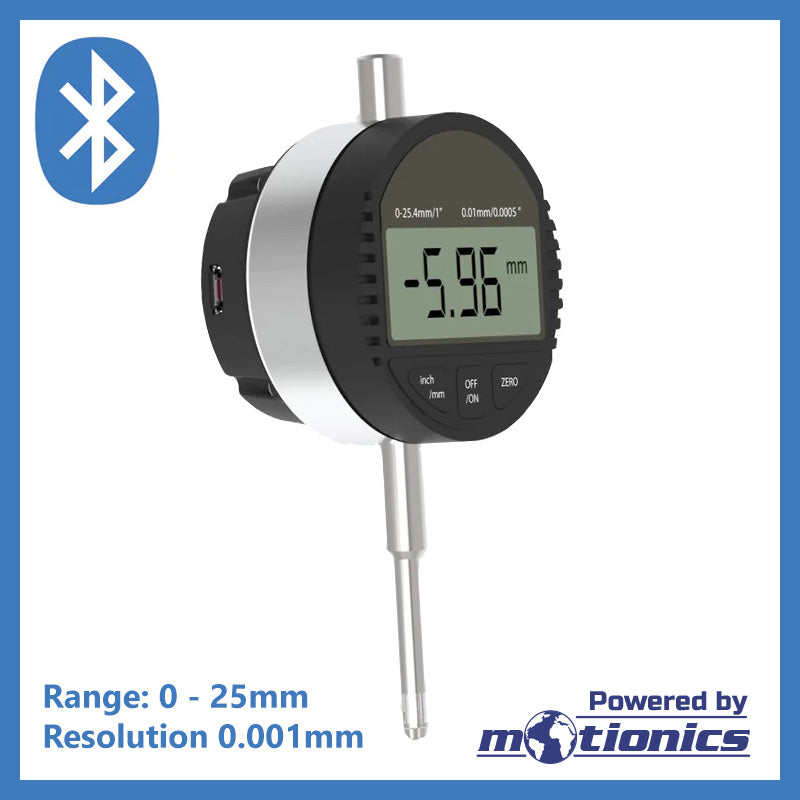

BlueDial-LT 203

In stock!

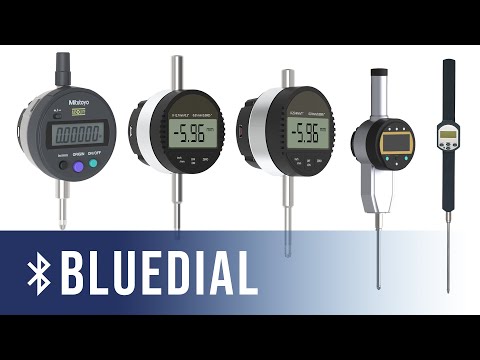

Comparison Table

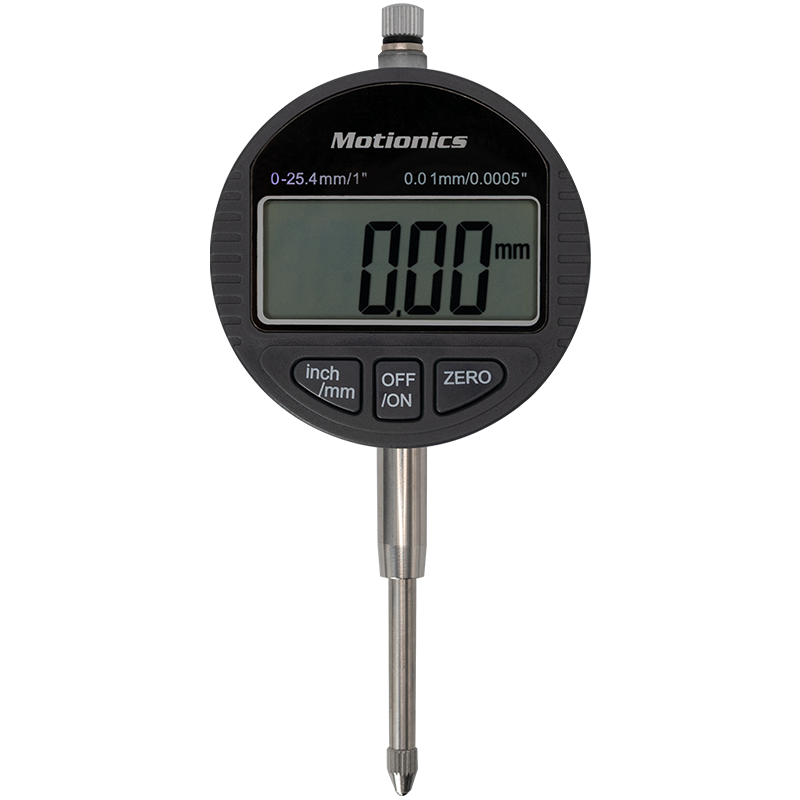

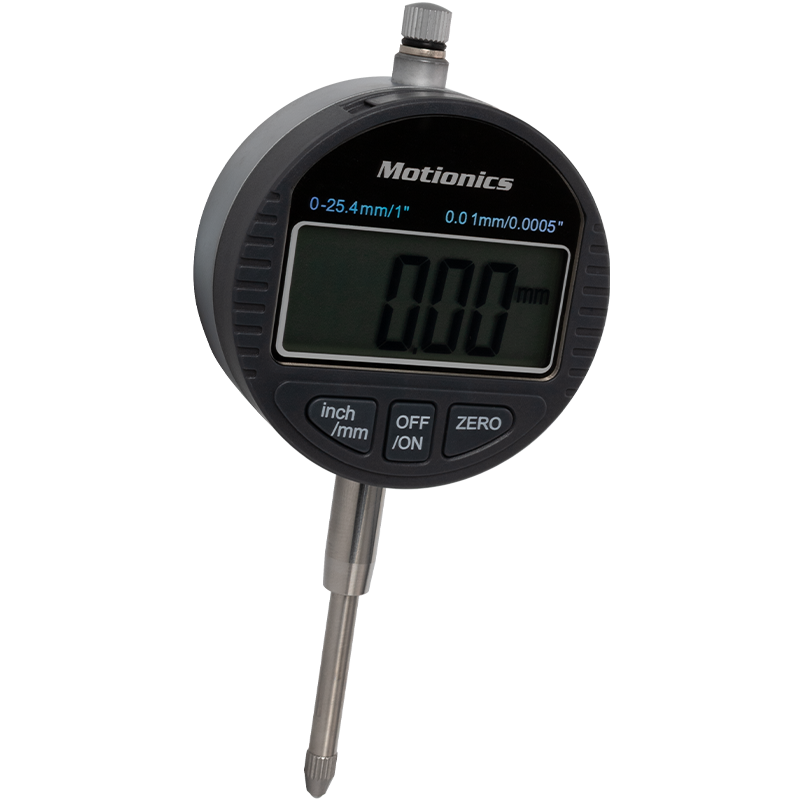

Bluedial-202 Bluedial-203
Bluedial-302 Bluedial-402
Measuring Range 25mm 25mm 50mm 100mm
Resolution 0.01mm 0.001mm 0.01mm 0.01mm
Accuracy  ±0.0025 mm  ±0.0005 mm ±0.0025 mm ±0.0025 mm
Wireless Data Rate Up to 8 samples/sec Up to 8 samples/sec Up to 8 samples/sec Up to 8 samples/sec
Transmission Range  35m
35m 35m 35m
Working Temperature 0-40 ºC 0-40 ºC 0-40 ºC 0-40 ºC
Battery Usage Life 30hr 30hr 30hr 30hr


Product Description

A high-accuracy dial indicator that combines absolute measurement for deflection applications, high resolution and a high-quality build with an integrated Motionics Bluetooth transmitter. The BlueDial allows you to safely and efficiently record deflection measurements wirelessly on your iPad, iPhone, Android device, or Windows PC, while eliminating the hassle of cables and wires.

Applications:

  • Measuring deflection in slewing bearings on large excavators or cranes
  • Monitoring structural movement in machine frames during load testing
  • Capturing runout on rotating shafts or face plates in mining and heavy industry

Device Connection

For iOS, up to 14 gauges can be simultaneously connected.

For Android, up to 8 gauges can be simultaneously connected.

For Windows PC, up to 8 gauges can be simultaneously connected to a single dongle. More dongles can be added at the same time to increase connection capacity.
