- Sku:
BlueDial-LT 202
In stock!
Comparison Table
| Bluedial-202 | Bluedial-203 |
Bluedial-302 | Bluedial-402 | |
|---|---|---|---|---|
| Measuring Range | 25mm | 25mm | 50mm | 100mm |
| Resolution | 0.01mm | 0.001mm | 0.01mm | 0.01mm |
| Accuracy | ±0.0025 mm | ±0.0005 mm | ±0.0025 mm | ±0.0025 mm |
| Wireless Data Rate | Up to 8 samples/sec | Up to 8 samples/sec | Up to 8 samples/sec | Up to 8 samples/sec |
| Transmission Range | 35m |
35m | 35m | 35m |
| Working Temperature | 0-40 ºC | 0-40 ºC | 0-40 ºC | 0-40 ºC |
| Battery Usage Life | 30hr | 30hr | 30hr | 30hr |

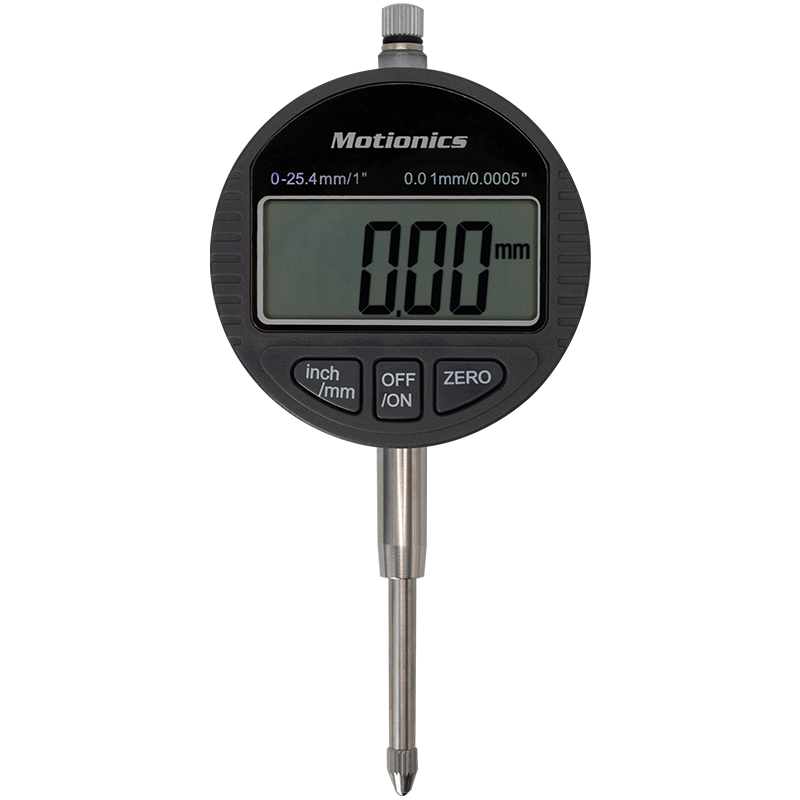

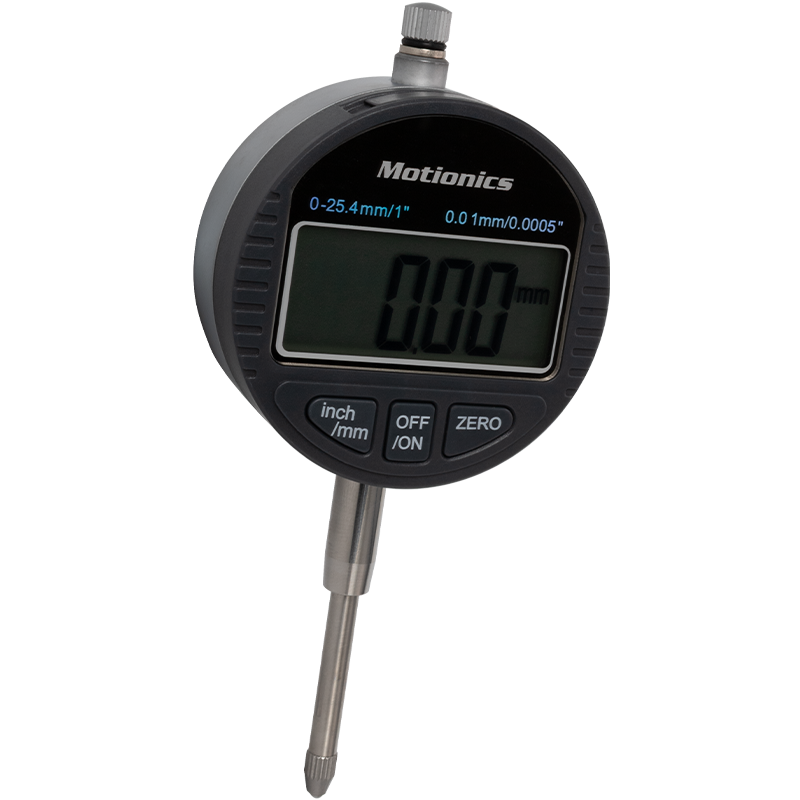

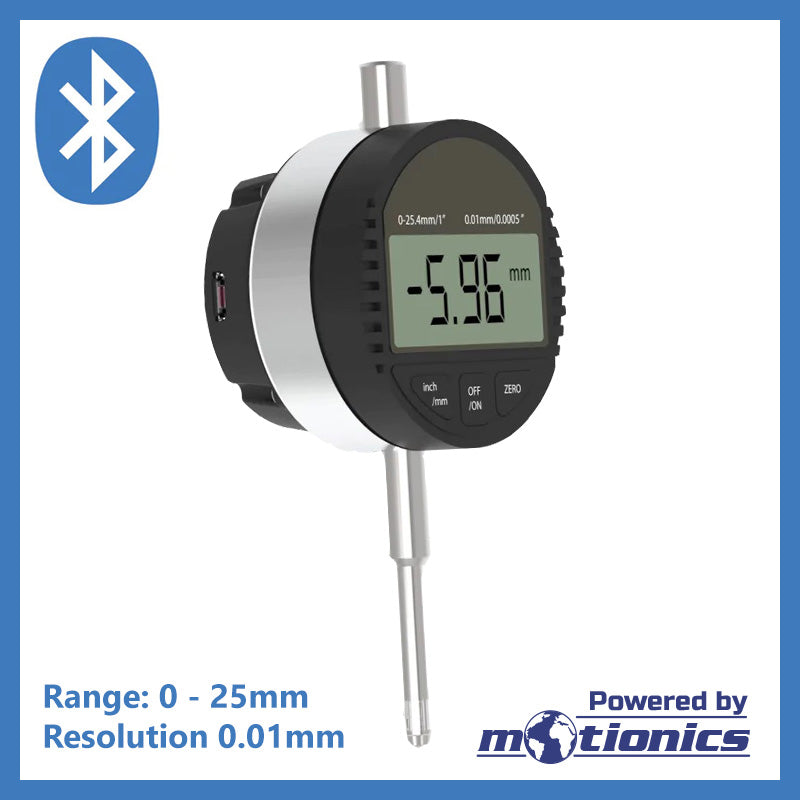

A high-accuracy dial indicator that combines absolute measurement for deflection applications, high resolution and a high-quality build with an integrated Motionics Bluetooth transmitter. The BlueDial allows you to safely and efficiently record deflection measurements wirelessly on your iPad, iPhone, Android device, or Windows PC, while eliminating the hassle of cables and wires.
Applications:
- Measuring deflection in slewing bearings on large excavators or cranes
- Monitoring structural movement in machine frames during load testing
- Capturing runout on rotating shafts or face plates in mining and heavy industry
For iOS, up to 14 gauges can be simultaneously connected.
For Android, up to 8 gauges can be simultaneously connected.
For Windows PC, up to 8 gauges can be simultaneously connected to a single dongle. More dongles can be added at the same time to increase connection capacity.
