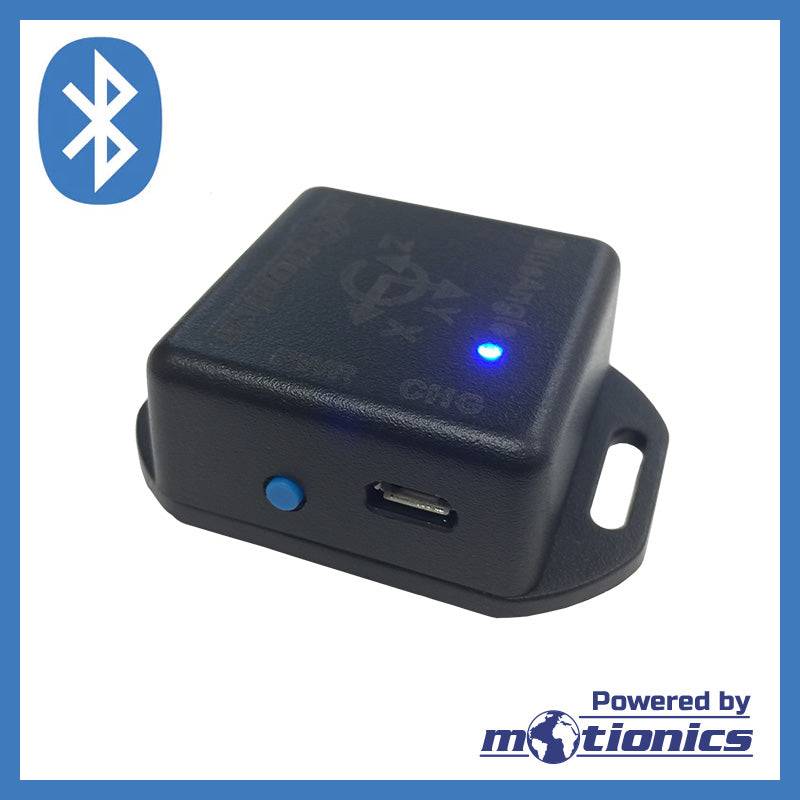

BlueAngle
BlueAngle is part of the rotor runout kit and must be used with Bluedial.
Does not work on vertical rotation to shaft, must be horizontal rotation with a workpiece.
Specifications
| BlueAngle - BA10 | |
|---|---|
| Dimensions |
40mm x 40mm x 20mm |
| Resolution | 0.1° |
| Wireless Data Rate | 50Hz |
| Transmission Range | 20m |
| Working Temperature | 0-50 ºC |
| Battery |
150mAh rechargeable |
| Battery Usage Life | 10hr |
Downloads

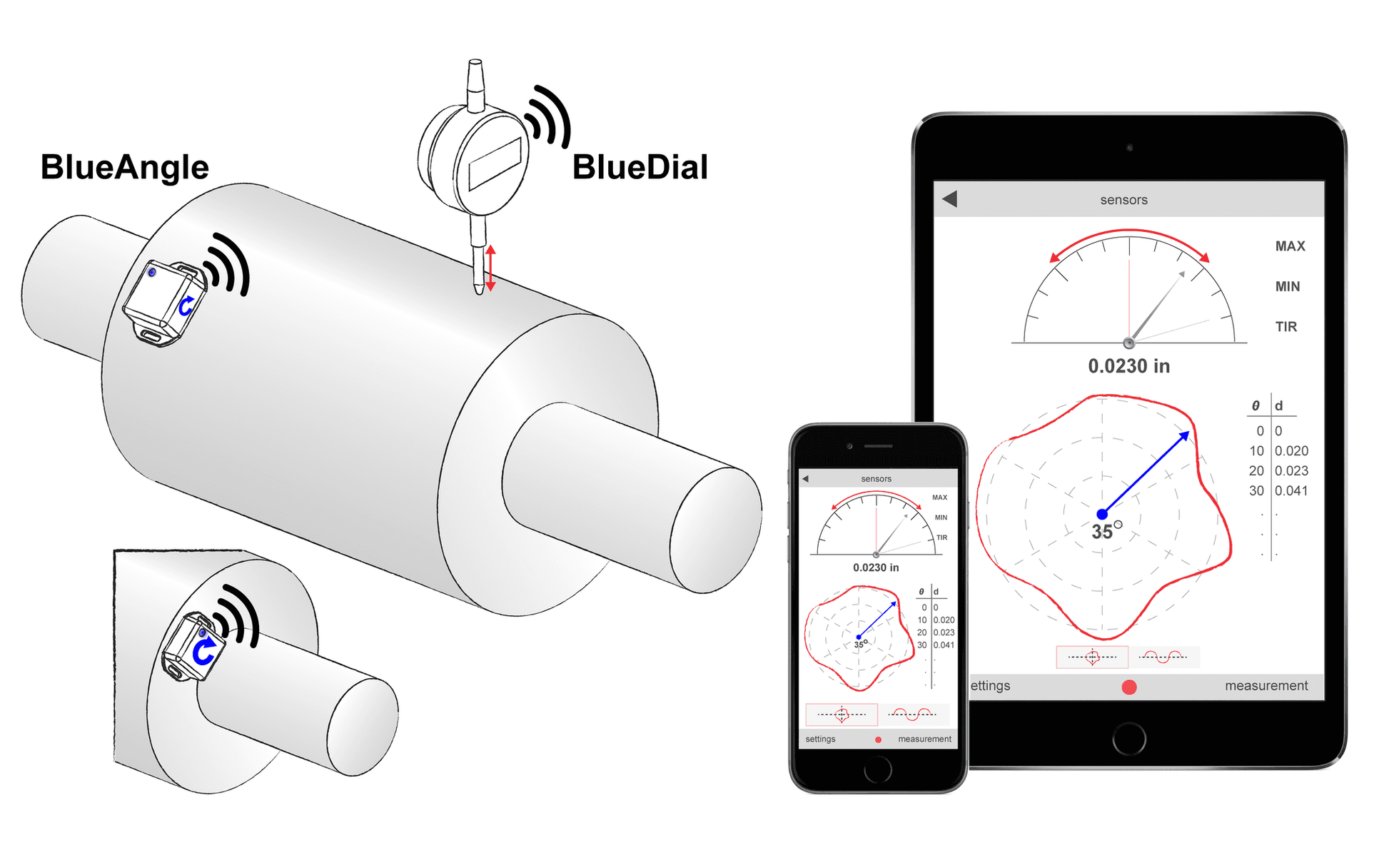

BlueAngle is a gyroscope-based Bluetooth angle sensor. It can be easily attached to a rotor with its magnetic base. While rotating with the rotor, BlueAngle measures the rotating angle and wirelessly transmits readings to iPad within a 20 meter range via Bluetooth at a rate of 50 samples per second.
