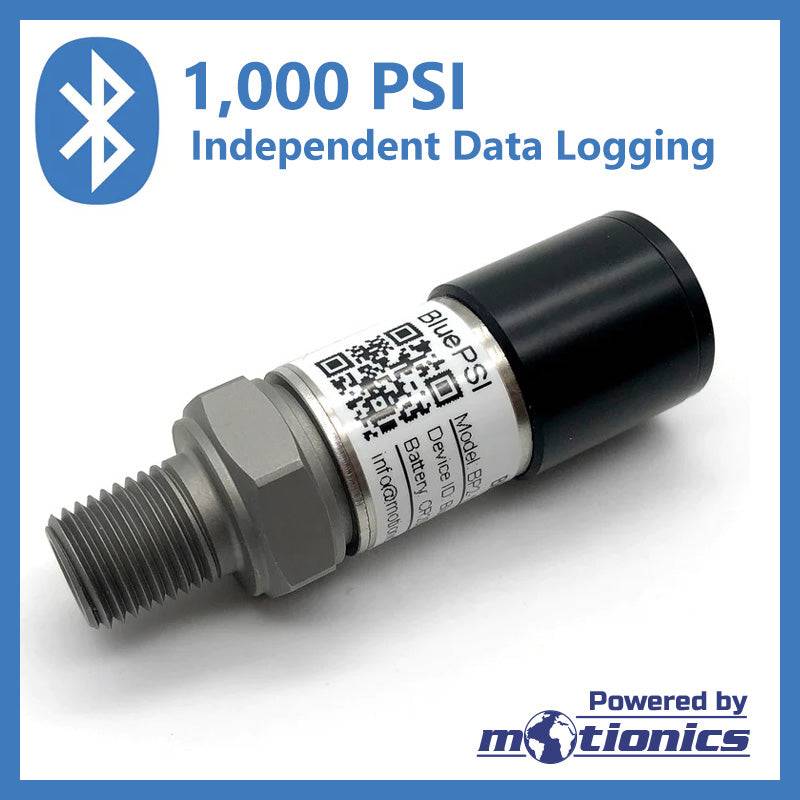

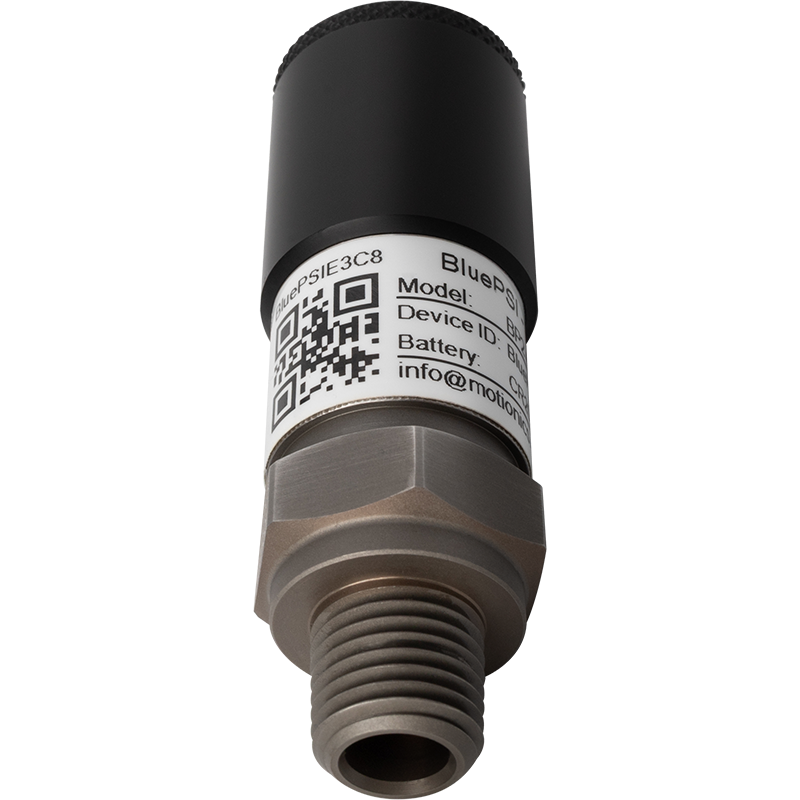

BluePSI BP201K02
| Pressure Range | Model Number |
Transducer Error |
Data Logging |
Temp. Measurement |
| 100 PSI | BP2-100-01 BP2-100-02 |
± 0.25 PSI | No Yes |
Yes |
| 1,000 PSI | BP2-01K-01 BP2-01K-02 |
± 2.5 PSI | No Yes |
Yes |
| 5,000 PSI | BP2-05K-01 BP2-05K-02 |
± 12.5 PSI | No Yes |
Yes |
| 10,000 PSI | BP2-10K-01 BP2-10K-02 |
± 25 PSI | No Yes |
Yes |
| 15,000 PSI | BP2-15K-01 BP2-15K-02 |
± 37.5 PSI | No Yes |
Yes |

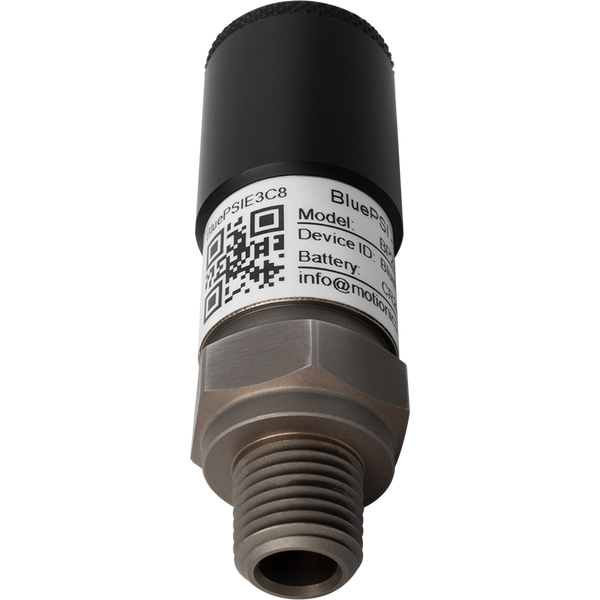

BluePSI is a Bluetooth 4.0 wireless pressure and temperature sensor with high accuracy, long battery life, and an IP67 rating, giving it a high resistance to dust and water It enables continuous monitoring across multiple locations simultaneously and connects withiOS, Android, and Windows devices, eliminating the need for hard wiring and manual data logging.
Applications:
- Monitoring hydraulic and pneumatic system pressures
- Diagnosing pressure fluctuations in industrial machinery
- Remote pressure testing during servicing or shutdowns
|
Accuracy: ±0.25% of full scale
Proof Pressure: 2x measurement range Burst Pressure: 5x measurement range Transmission Range: Up to 35m Wireless Data Rate: Up to 10 samples/sec Ambient Operating Temperature: -20 to 85 °C Media Temperature 125 °C
Temp Measurement Range: -20 to 85°C ±3°C Battery Life: 2 years at 5-second interval with CR2050 Battery Type: CR2050/CR2032 Port Thread: ¼-18NPT |
For iOS, up to 14 gauges can be simultaneously connected.
For Android, up to 8 gauges can be simultaneously connected.
For Windows PC, up to 8 gauges can be simultaneously connected to a single dongle. More dongles can be added at the same time to increase connection capacity.
Along with streaming real-time readings, BluePSI2-XXX-02 models log data internally. Users can simply start data logging on the device and come back later to fetch data logged in onboard memory all at once in a batch. The data logging feature provides a new solution for use cases where it’s inconvenient to leave a receiving smart device or PC, or it’s difficult to maintain a connection throughout the data collection session
