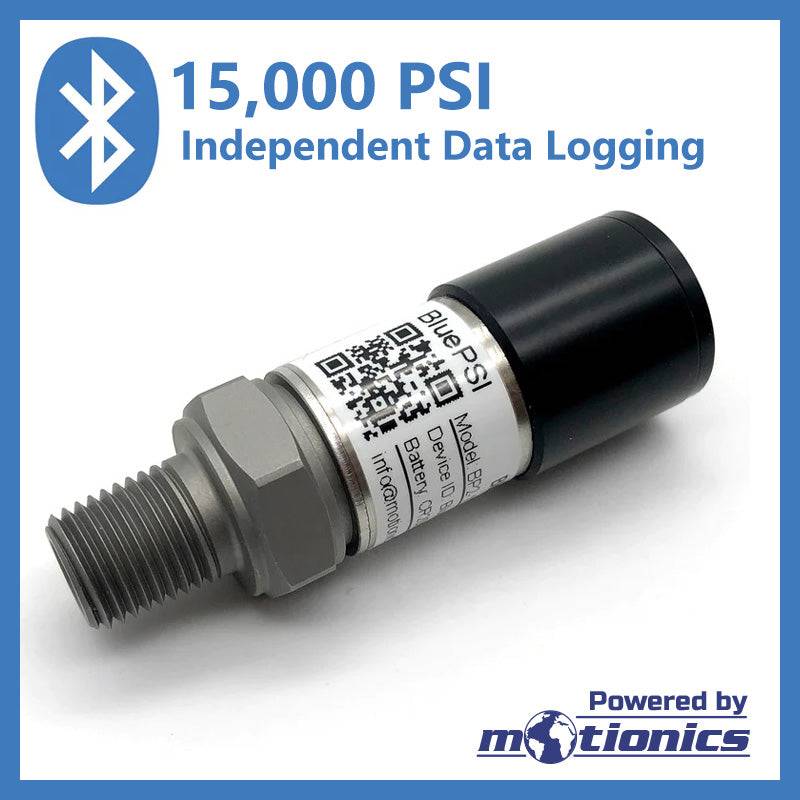

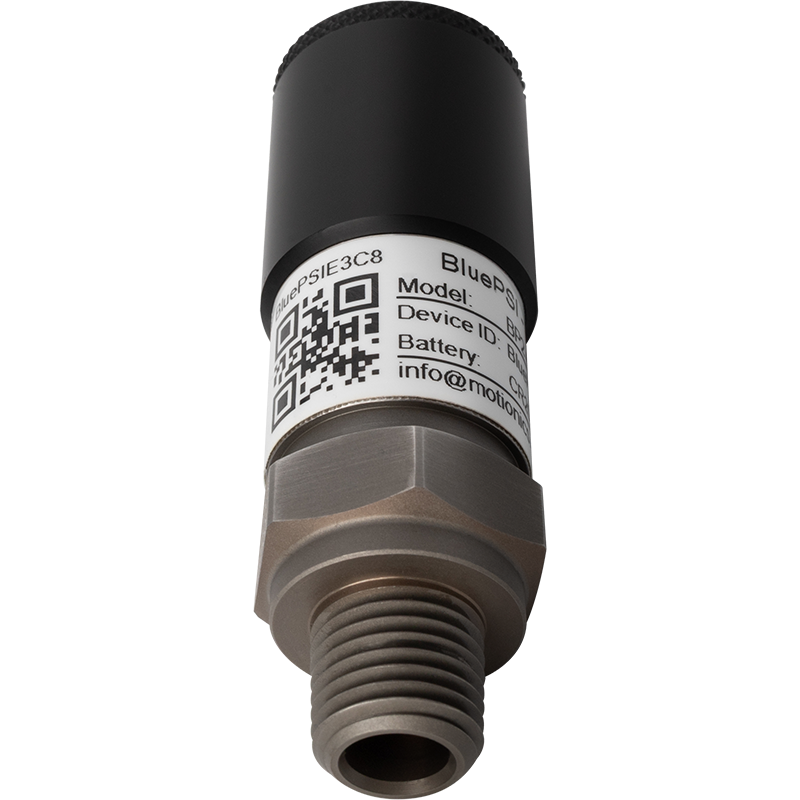

BluePSI BP215K02
| Pressure Range | Model Number |
Transducer Error |
Data Logging |
Temp. Measurement |
| 100 PSI | BP2-100-01 BP2-100-02 |
± 0.25 PSI | No Yes |
Yes |
| 1,000 PSI | BP2-01K-01 BP2-01K-02 |
± 2.5 PSI | No Yes |
Yes |
| 5,000 PSI | BP2-05K-01 BP2-05K-02 |
± 12.5 PSI | No Yes |
Yes |
| 10,000 PSI | BP2-10K-01 BP2-10K-02 |
± 25 PSI | No Yes |
Yes |
| 15,000 PSI | BP2-15K-01 BP2-15K-02 |
± 37.5 PSI | No Yes |
Yes |
|
Accuracy: ±0.25% of full scale
Proof Pressure: 2x measurement range Burst Pressure: 5x measurement range Transmission Range: Up to 35m Wireless Data Rate: Up to 10 samples/sec Ambient Operating Temperature: -20 to 85 °C Media Temperature 125 °C
Temp Measurement Range: -20 to 85°C ±3°C Battery Life: 2 years at 5-second interval with CR2050 Battery Type: CR2050/CR2032 Port Thread: ¼-18NPT |
BluePSI is a wireless pressure sensor used for the measurement of liquid or gas pressure as well as temperature measurement. These Bluetooth-enabled pressure sensors, with the help of our free software, allow you to continuously monitor pressure in multiple locations simultaneously on your iOS, Android, or Windows device.
It has high accuracy (±0.25%FS), has a long battery life (up to 2 years with a coin battery), and is IP67 rated for high resistance to water and dust exposure. Most importantly, it eliminates the need for hard wiring and manual data logging thanks to its Bluetooth Low Energy wireless connectivity.
Features
- Compact, will fit side by side on transmission test
- Standby battery time 2 years
- 1440 hrs. run time on 5 samples a second
- Waterproof IP67
- US made
For iOS, up to 14 gauges can be simultaneously connected.
For Android, up to 8 gauges can be simultaneously connected.
For Windows PC, up to 8 gauges can be simultaneously connected to a single dongle. More dongles can be added at the same time to increase connection capacity.
Along with streaming real-time readings, BluePSI2-XXX-02 models log data internally. Users can simply start data logging on the device and come back later to fetch data logged in onboard memory all at once in a batch. The data logging feature provides a new solution for use cases where it’s inconvenient to leave a receiving smart device or PC, or it’s difficult to maintain a connection throughout the data collection session
