- Sku:
BlueDial-LT 402
In stock!
Comparison Table
| Bluedial-202 | Bluedial-203 |
Bluedial-302 | Bluedial-402 | |
|---|---|---|---|---|
| Measuring Range | 25mm | 25mm | 50mm | 100mm |
| Resolution | 0.01mm | 0.001mm | 0.01mm | 0.01mm |
| Accuracy | ±0.0025 mm | ±0.0005 mm | ±0.0025 mm | ±0.0025 mm |
| Wireless Data Rate | Up to 8 samples/sec | Up to 8 samples/sec | Up to 8 samples/sec | Up to 8 samples/sec |
| Transmission Range | 35m |
35m | 35m | 35m |
| Working Temperature | 0-40 ºC | 0-40 ºC | 0-40 ºC | 0-40 ºC |
| Battery Usage Life | 30hr | 30hr | 30hr | 30hr |

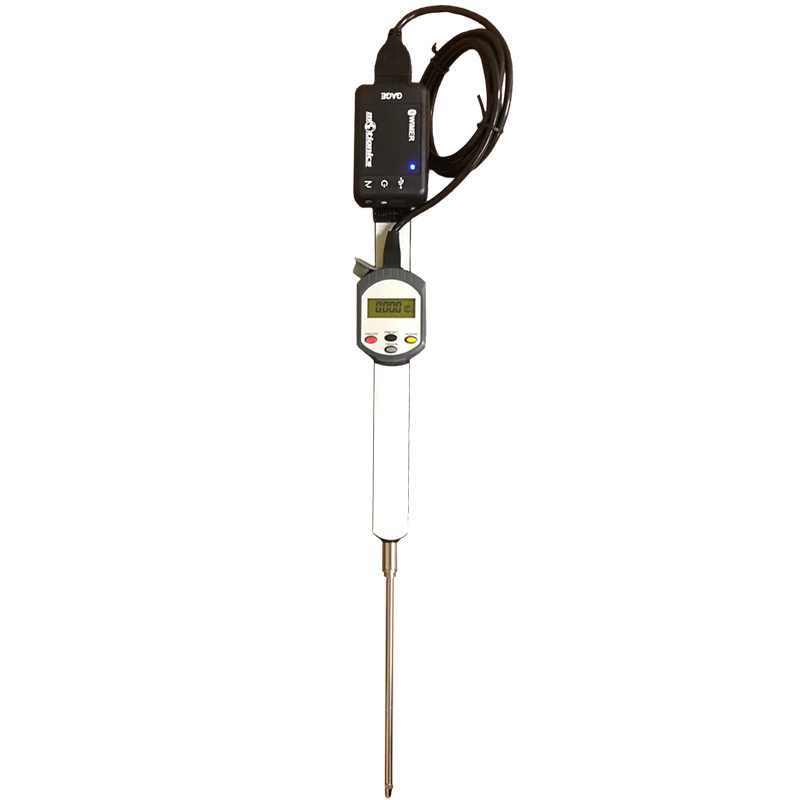

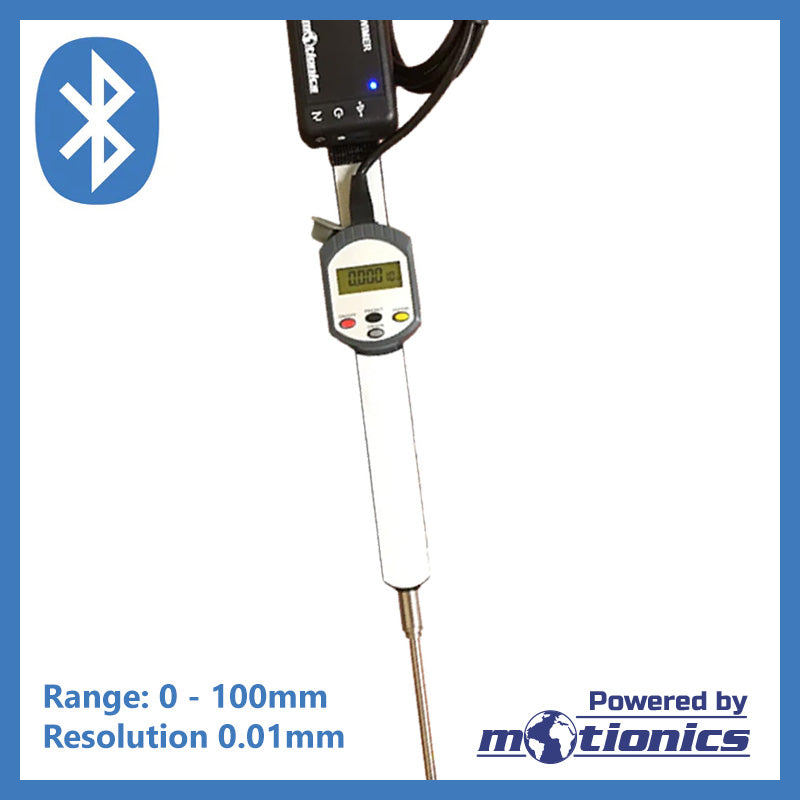

BlueDial-LT is a dial indicator with an integrated Bluetooth transmitter on the back. It integrates a high-accuracy dial indicator with a Bluetooth Low Energy data transmitter. All the readings will be wirelessly collected and displayed on a smart device or PC.
For iOS, up to 14 gauges can be simultaneously connected.
For Android, up to 8 gauges can be simultaneously connected.
For Windows PC, up to 8 gauges can be simultaneously connected to a single dongle. More dongles can be added at the same time to increase connection capacity.
